ठिबक सिंचन पाईप उत्पादन लाइन वितरण

Flat panel emitter drip irrigation tape production line

characteristic:

1. The dropper is injection molded in one go and has a wide and long flow channel. It serves as a filter window and has strong anti clogging performance.

2. Good uniformity of water output. The drip head is directly welded to the drip irrigation pipe, reducing pressure loss and saving water.

3. It can achieve the simultaneous use of water and fertilizer, improve fertilizer utilization efficiency, save labor and fertilizer

4. Adopting a labyrinth flow channel with a certain pressure compensation effect.

5. The dropper is integrated with the pipeline, easy to install and use, low cost, and low investment.

6. Drip irrigation pipes of different specifications are suitable for different irrigation situations,

The distance between the dripper and can be adjusted according to the needs of different crops to meet different customers.

We provide embedded patch drip irrigation pipe production lines, embedded cylindrical drip irrigation pipe production lines, and maze drip irrigation pipe product lines.

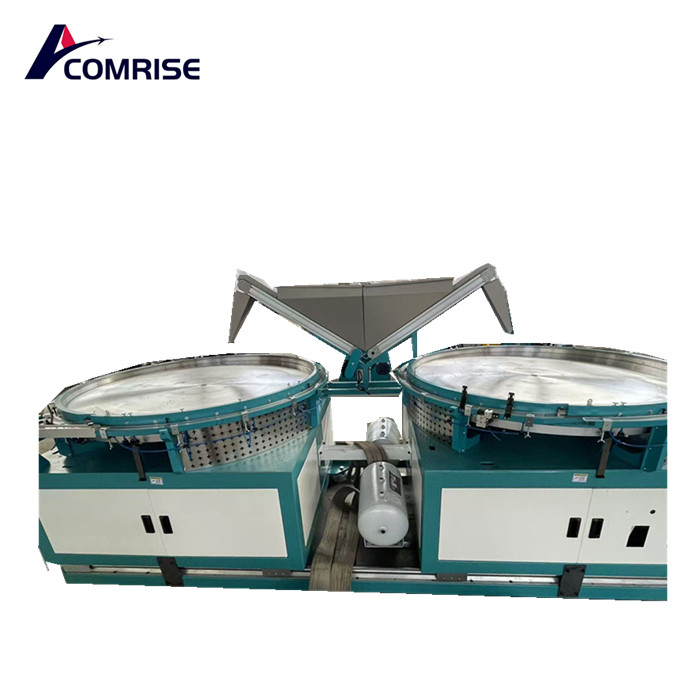

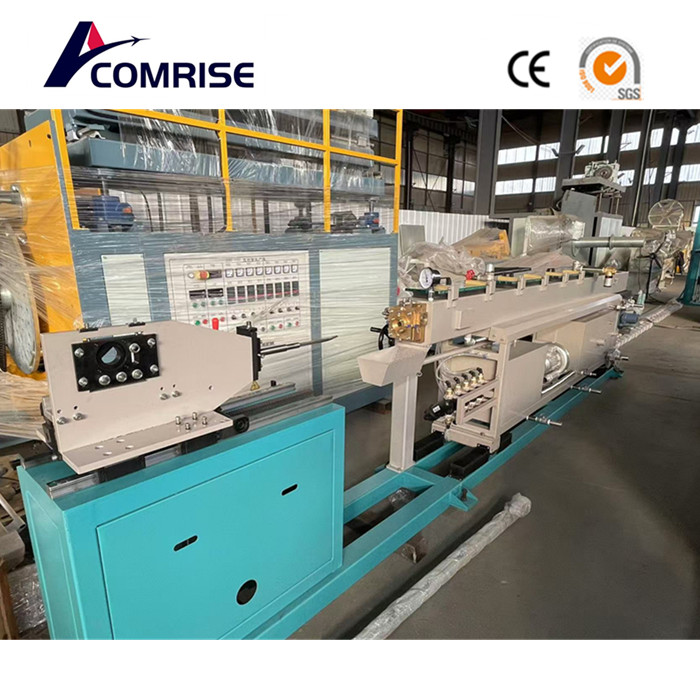

The entire equipment consists of the feeding system, droplet screening device, extruder, screen changer, mold, calibrator, vacuum cooling system, punching detection device, traction device, winding machine and other main components. The entire equipment is controlled by PLC and driven by servo motors, ensuring more precise control and ensuring the automation of the entire production line.

Inlaid patch type

The characteristics of the internally embedded cylindrical drip irrigation pipe are:

1. The spacing between droppers can be adjusted according to the needs of different crops, either equidistant or non equidistant.

2. The dropper adopts a unique design with a wide arc-shaped channel, full turbulence, self flushing, and strong anti blocking ability. The laying length is long, up to 100 meters.

3. It can be used both on plains and on hills and slopes.

4. A dropper with one or two water outlets or four water outlets has strong anti clogging ability.

5. The wall thickness can reach 1.2 millimeters, with a long service life.

Equipment features:

1. Controlled by a computer system and operated through a touch screen, the production process is stable, easy to operate, and energy-efficient.

2. Droplet feeding, screening and sorting, conveying and embedding, pipe discharge, punching, and winding are completed synchronously, with a high degree of automation.

3. The extruder screw and barrel are made of high-quality 38CrMoAlA nitride alloy, which has undergone ion nitriding treatment to achieve a surface hardness of HV850-1000. The screw has been optimized to achieve uniform plasticization of the extruded material and smooth surface of the pipe.

4. The extrusion mold and shaping cooling device have a unique structure, made of special materials, and have accurate sizing dimensions.

5. The tractor adopts variable frequency speed regulation, which can meet various process speed requirements. The track surface has a rubber protective layer, effectively preventing the drip irrigation pipe from being deformed by the tractor clamp.

6. The punching machine is a mechanical punching machine with fast punching speed and stable operation.

7. Adopting a duplex position coiler, the winding length can be adjusted as needed.
